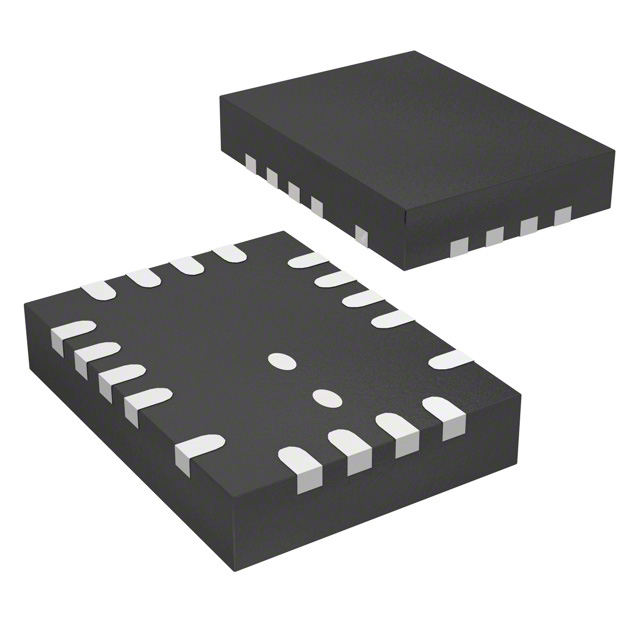

Image is for reference only.

Analog Devices LTC3115IDHD-1#WPBF

Manufacturer Part #:

LTC3115IDHD-1#WPBF

Manufacturer:

Analog Devices

Package/Case:

DFN-16-EP(4x5)

Datasheet:

LTC3115IDHD-1#WPBF

Description:

Boost type 2.7V~40V 2.7V~40V DFN-16-EP(4x5) DC-DC Converters ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	DC-DC Converters
Manufacturer	Analog Devices
Package/Case	DFN-16-EP(4x5)
Function	Boost type
Operating Temperature	-40℃~+125℃@(TJ)
Synchronous Rectifier	Yes
Frequency - Switching	2MHz
Output Type	-
Voltage - Supply	2.7V~40V
Output Current	800mA;2A
Switch tube (built-in/external)	Built-in
Topology	Step-down-Boost
Output Voltage	2.7V~40V
Number of Outputs	1
