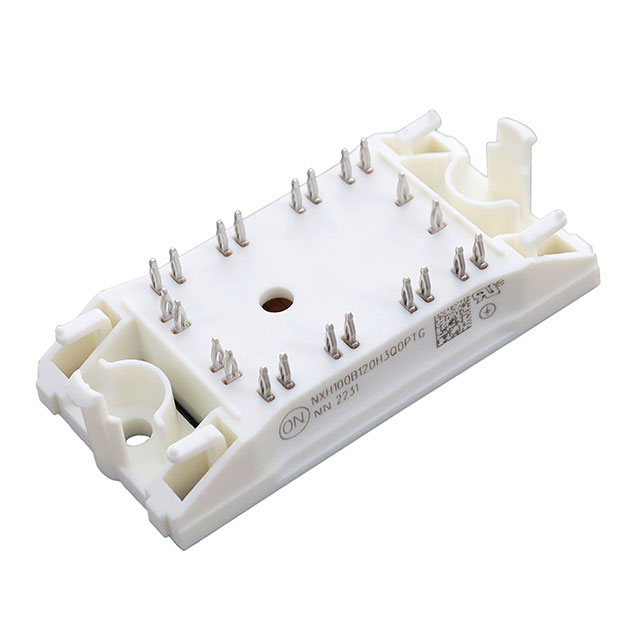

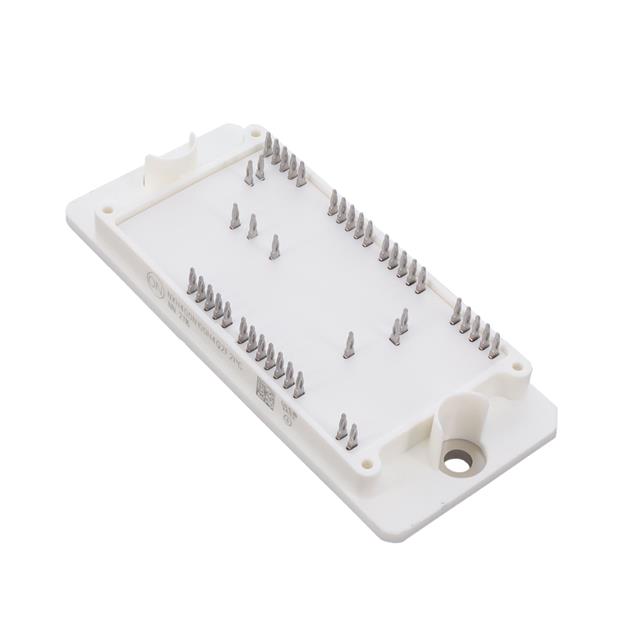

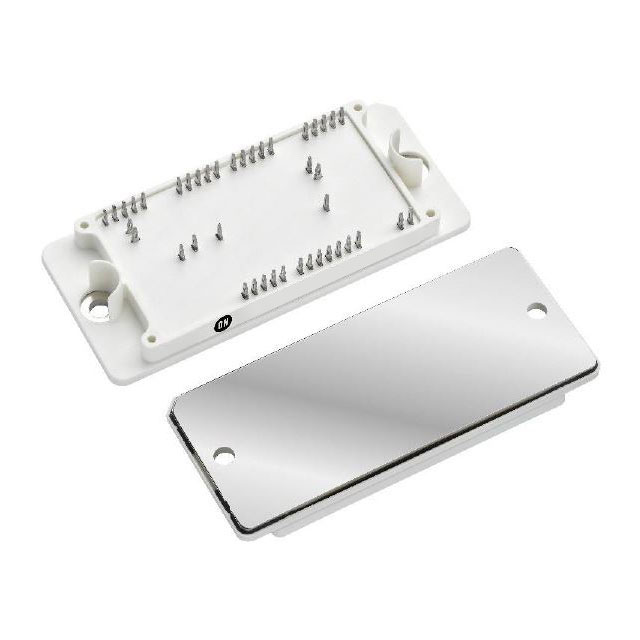

Image is for reference only.
onsemi NXH300B100H4Q2F2S1G
Manufacturer Part #:
NXH300B100H4Q2F2S1G
Manufacturer:
Package/Case:
Q2PACK-53(47x93)
Datasheet:
Description:
Loading…Specifications
| Type | Description | Select |
|---|---|---|
| Category | IGBT Modules | |
| Manufacturer | onsemi | |
| Package/Case | Q2PACK-53(47x93) | |
| Input Capacitance(Cies) | 6.323nF@20V | |
| Current - Collector(Ic) | 73A | |
| Pd - Power Dissipation | 194W | |
| Operating Temperature | -40℃~+175℃@(Tj) | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 2.25V@15V,100A | |
| IGBT Type | FS (Field Stop) | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.118kV |
