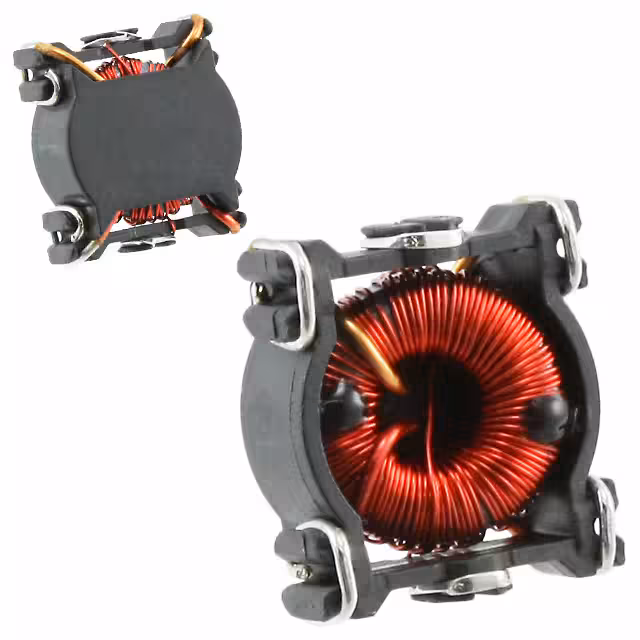

Image is for reference only.
Pulse Elec PA1005.100NLT
Manufacturer Part #:
PA1005.100NLT
Manufacturer:
Package/Case:
SMD
Datasheet:
Description:
20A 20kHz~1MHz SMD Current Sense Transformers ROHS
Loading…Specifications
| Type | Description | Select |
|---|---|---|
| Category | Current Sense Transformers | |
| Manufacturer | Pulse Elec | |
| Package/Case | SMD | |
| Frequency Range | 20kHz~1MHz | |
| DCR Secondary Side (Max) | 0.75mΩ | |
| DCR Primary Side (Max) | 0.75mΩ | |
| Isolation Voltage(Vrms) | - | |
| Secondary Side Inductance | - | |
| Rated input Current | 20A | |
| Turns Ratio | - |
